Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Name: Pure 999 Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations
Brand: TSING SHAN
Price: 13.2 USD

Quality Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations wholesale

Brand Name : TSING SHAN

Model Number : C1100 C1200 C1220

Certification : ISO SGS MTC

Place of Origin : China

MOQ : 10KGS

Price : 13.2-20.5 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 50000KGS

Delivery Time : 7 Days

Packaging Details : Export Packing

Length : custom as request

Dimensions : Customizable

Samples : Available

Service : Drawing Custom

Advantage : High Ductility

Shape : Round Square

Size : Customized Size

Sample : Avaliable

Availability : Abundant and widely available

Transport Package : Standard Seaworthy Export Packing

Feature : Eco-Friendly,Stocked,with copper plated

Type : Beer Mugs,Drinkware Mug

Form : Sheets, Rods, Wires, Tubes

Contact Now

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Product Description

ASTM C10100 C11000 C12000 Copper Sheet / ETP DHP Copper Plate
1.5mm copper sheet plate sheet prices 4ft x 8 ft

Pure copper is a soft metal. When the surface is just cut, it is red orange with metallic luster, and the simple substance is purplish red. Good ductility, high thermal conductivity and conductivity, so it is the most commonly used material in cables and electrical and electronic components. It can also be used as building materials and can form many kinds of alloys.
Copper alloy has excellent mechanical properties and low resistivity, among which bronze and brass are the most important.
In addition, copper is also a durable metal, which can be recycled many times without damaging its mechanical properties.

Copper Sheet, Copper Plate,Copper Bar
Material	C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc.
Specifications	Thickness	0.1mm-200mm
	Width	10mm-2500mm
	Length	10mm~12000mm,or as required.

CHEMICAL COMPOSITION

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	-	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

PHYSICAL PROPERTIES

Grade	Temper	Hardness(HV)	Tensile strength(Mpa)	Elongation(%)
C1000 C1200 C1220 etc.	Soft	<60	>205	≥40
	1/4H	55-100	217-275	≥35
	1/2H	75-120	245-345	≥25
	H	105-175	>295	≥13

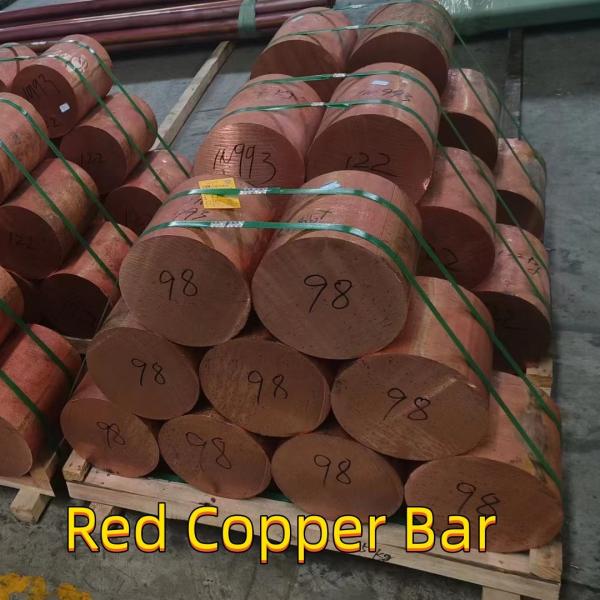

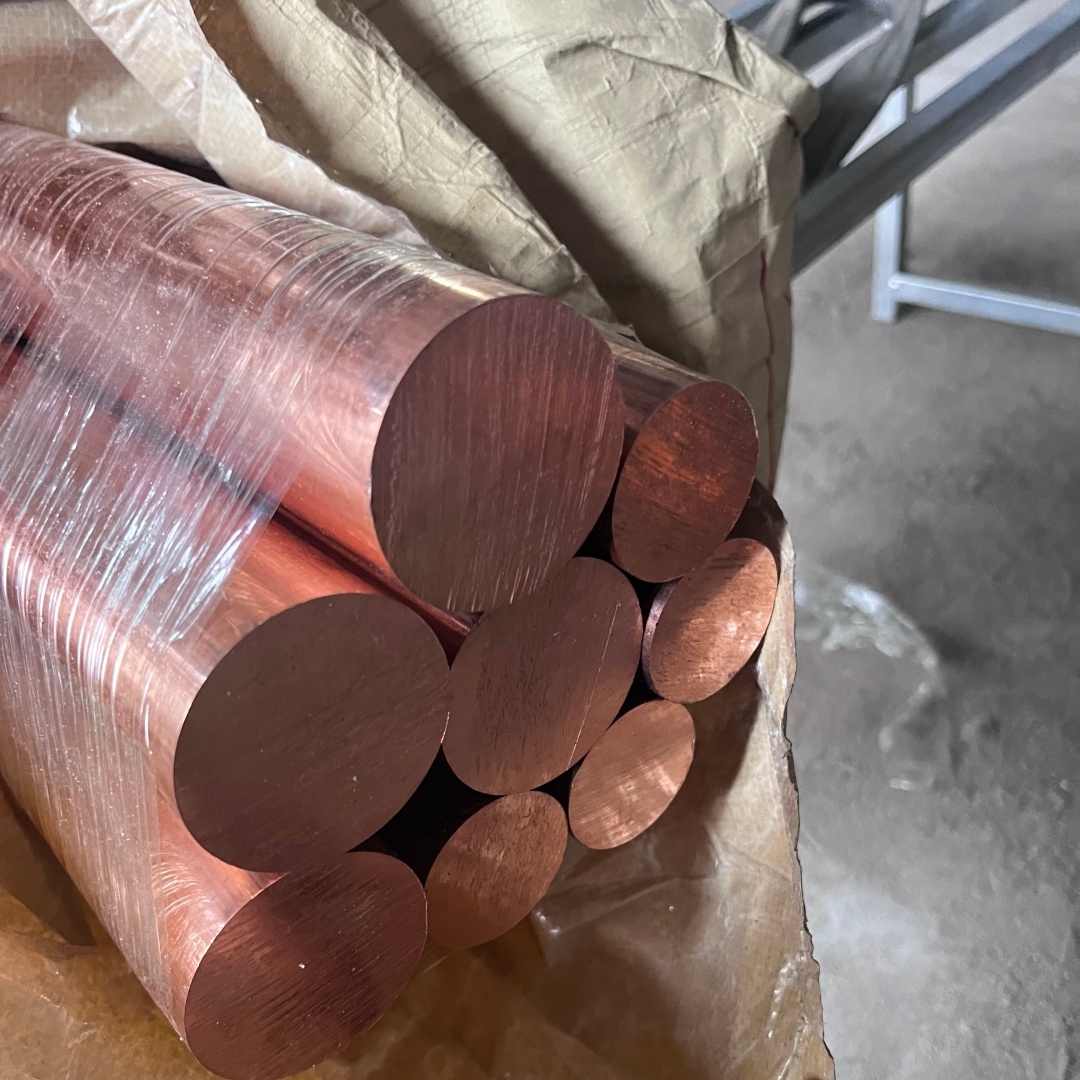

PHOTO:

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

APPLICATION
1) Further making utensil.
2) Solar reflective film
3) The appearance of the building
4) Interior decorating:ceilings,walls,etc.
5) Furniture cabinets
6) Elevator decoraction
7) Signs,nameplate,bags making.
8) Decorated inside and outside the car
9) Household appliances:refrigerators,microwave ovens,audio equipment,etc.
10) The consumer electronics:mobile phones,digital cameras,U disk,etc.

Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.

Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.

Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.

Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.

Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
